Complete set of reactive power compensation equipment

Environmental usage conditions:
a. The altitude of the area of use shall not exceed 1000m.
b. The ambient temperature in the area of use: -40~+45 ℃.
c. The place of use should be free from severe mechanical vibration, harmful gases and vapors, and conductive or explosive dust.
4.2 Other usage conditions:
Before the capacitor is put into operation, the remaining voltage between its terminals should not exceed 10% of the rated voltage. When capacitors involve high relative humidity, rapid mold growth, corrosive atmosphere, pollution, and altitude exceeding 1000m


Keywords:

Complete reactive power compensation device

Details

1 Overview
A device consisting of a high-voltage shunt capacitor, a capacitor cabinet or metal frame, a fuse, a discharge device, a series reactor, a pillar insulator, a lightning arrester, a disconnecting switch, a grounding switch, a circuit breaker and a connecting bus, is called a high-voltage shunt capacitor device (hereinafter referred to as the "device"). Its performance conforms to the standards of GB/T 30841-2014 "General Technical Requirements for High Voltage Shunt Capacitor Devices" and GB50227-2017 "Design Specification for High Voltage Shunt Capacitor Devices".
2 Uses
It is mainly used for reactive power compensation in 6kV, 10kV and 35kV power frequency power systems to improve power factor of the grid, reduce line losses and improve voltage quality.
3 Features
3.1 Safe and reliable.
3.2 Easy Installation.
3.3 Easy maintenance.
3.4 Strong integrity.
4 Technical Data
4.1 Main Parameters
4.1.1 High voltage shunt capacitor devices are arranged in various ways. This design and selection manual only lists typical layout schemes. The main parameters and dimensions of the device are shown in Appendix A and Appendix B of the table, and the main wiring modes are shown in Appendix C of the figure for users' reference.
4.1.2 Rated frequency of device: 50Hz
4.1.3 Number of device phases: 3 phases
4.2 Main Performance
4.2.1 Loss Angle tangent value of capacitor in the device: full film medium structure, no more than 0.0005.
4.2.2 Capacitance deviation of the device: The deviation between the measured capacitance of the capacitor bank in the device and its rating shall not exceed 0 ~ +5%. The ratio between the maximum value and the minimum value of any two-phase measured capacitance of the capacitor bank is not greater than 1.02; The ratio between the maximum and minimum measured capacitance of each series segment is no more than 1.02.
4.2.3 The device is allowed to operate for a long time at 1.1 times the rated voltage.
4.2.4 The device is allowed to operate for a long time under steady overcurrent with an effective value of 1.3 times the rated current due to overvoltage and higher harmonics.
5 Structure
5.1 The device installed indoors is cabinet structure or section steel frame structure, and the device used outdoors is section steel frame structure.
5.2 Cabinet structure is generally composed of wire inlet cabinet, transformer cabinet, capacitor cabinet and reactor cabinet. The cabinet body is made of high quality cold rolled steel plate and aluminum zinc steel plate, which is processed by advanced CNC machine tool. The surface is treated by pickling phosphating spray technology, and the cabinet body is beautiful.
5.3 Medium and high voltage shelled capacitors in the device are diarylethane impregnated polypropylene film or benzyltoluene impregnated polypropylene film. The rated capacity of a single capacitor is 100kvar, 200kvar, 334kvar, 500kvar, etc
5.4 When the rated capacity of a single capacitor in the device is less than 200kvar, the external fuse is used as the first level of protection for internal faults; when the rated capacity of a single capacitor is more than 200kvar, the internal fuse is generally used as the first level of protection for internal faults.
The external fuse is connected with the capacitor in series. When there is a partial series breakdown inside a capacitor, the fuse will act to remove the faulty capacitor quickly and effectively prevent the expansion of the fault.
The internal fuse is connected in series with the internal components of a single capacitor. Once the component fails, the fuse is blown and the faulty component is removed, allowing the remaining parts of the single capacitor and the capacitor bank connected to the capacitor to continue to operate.
5.5 The discharge coil is connected in parallel in the capacitor loop. After the capacitor is removed from the grid, the remaining voltage on the capacitor can be reduced from √2Un to 50V or lower within 5s.
5.6 The zinc oxide arrester is connected in parallel to the wire to limit the operating overvoltage caused by switching capacitor banks.
5.7 Series reactor connected in series in the capacitor loop can be placed before or after, to restrain the higher harmonics in the capacitor bank and limit the closing inrush current. When it is only used to limit inrush current, the reactance is selected from 0.1% to 1%. When it is used to suppress 5 or more high harmonics, the reactance rate is 5% ~ 6%. When it is used to suppress 3 or more high harmonics, the reactance rate is 12%.

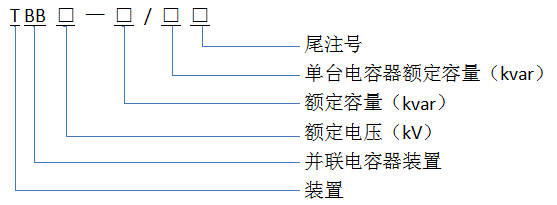

6 Meanings of symbols in Models

无功补偿成套装置

The endnote number is represented by three capital letters, and the first letter indicates the main wiring mode, as shown in Table 1. The second letter indicates the relay protection mode of the capacitor bank, as shown in Table 2. The third letter indicates the use of the occasion, outdoor with a W, indoor use is not marked.


Table 1 Meaning of the first letter of endnote number

letter

meaning

A

Single star

B

Double star

C

tristar

Table 2 Meaning of the second letter of endnote number



letter

meaning

C

Voltage differential protection

K

Open triangle voltage protection

Q

Bridge differential current protection

L

Neutral unbalanced current protection

Y

Neutral unbalanced current protection

Example: TBB35-10000/417ACW

The shunt capacitor device, the rated voltage of the device is 35kV, the rated capacity of the capacitor bank is 10000kvar, the rated capacity of a single capacitor is 417kvar, the single star connection, the voltage differential protection, is installed outdoors.

7. Conditions of use

7.1 Installation and use place: indoor or outdoor.

7.2 The elevation of the installation and operation site shall not exceed 1000m.

7.3 Temperature Category: indoor -25/A Outdoor -40/A.

7.4 Relative humidity: daily average is not more than 95%, monthly average is not more than 90%;

7.5 There is no gas or steam that is seriously corrosive to metal, no electrical conductivity or explosive dust, and no violent mechanical vibration.

7.6 When the capacitor is put into operation, the remaining voltage on the terminal shall not exceed 10% of the rated voltage. If you have other requirements, please contact us. Appendix A High voltage shunt capacitor set parameters table

Table 3 Main technical data of the complete set of indoor cabinet high voltage shunt capacitors (capacitor vertical)

No.

Model

Rated voltage (kV)

Rated capacity (kvar)

Unit capacity (kvar)

Protection scheme

Weight

Drawing No

L

W

H

1

TBB6-600/200AK

6

600

200

External fault protection: quick break, over current, over voltage, voltage loss
Internal fault protection: internal fuse + open triangle voltage protection (voltage differential protection)

1850

1500

2500

3

2

TBB6-1200/200AK

1200

200

2450

1500

2500

3

TBB6-1800/200AK

1800

200

2450

1500

2500

4

TBB6-2400/200AK

2400

200

3050

1500

2500

5

TBB6-3000/200AK

3000

200

3050

1500

2500

6

TBB6-3600/200AK

3600

200

3650

1500

2500

7

TBB6-4200/200AK

4200

200

3650

1500

2500

8

TBB6-4800/200AK

4800

200

4250

1500

2500

9

TBB6-1000/334AK

1000

334

1850

1500

2500

10

TBB6-2000/334AK

2000

334

2450

1500

2500

11

TBB6-3000/334AK

3000

334

2450

1500

2500

12

TBB6-4000/334AK

4000

334

3050

1500

2500

13

TBB6-5000/334AK

5000

334

3050

1500

2500

14

TBB6-6000/334AK

6000

334

3650

1500

2500

15

TBB6-1200/400AK

1200

400

1850

1500

2500

16

TBB6-2400/400AK

2400

400

2450

1500

2500

17

TBB6-3600/400AK

3600

400

2450

1500

2500

18

TBB6-4800/400AK

4800

400

3050

1500

2500

19

TBB6-5000/417AK

5000

417

3050

1500

2500

20

TBB6-6000/500AK

6000

500

3050

1500

2500

21

TBB6-5000/417AC

5000

417

3650

1500

2500

4

22

TBB6-6000/500AC

6000

500

3650

1500

2500

23

TBB10-600/200AK

10

600

200

1850

1500

2500

3

24

TBB10-1200/200AK

1200

200

2450

1500

2500

25

TBB10-1800/200AK

1800

200

2450

1500

2500

26

TBB10-2400/200AK

2400

200

3050

1500

2500

27

TBB10-3000/200AK

3000

200

3050

1500

2500

28

TBB10-3600/200AK

3600

200

3650

1500

2500

29

TBB10-4200/200AK

4200

200

3650

1500

2500

30

TBB10-4800/200AK

4800

200

4250

1500

2500

31

TBB10-1000/334AK

1000

334

1850

1500

2500

32

TBB10-2000/334AK

2000

334

2450

1500

2500

33

TBB10-3000/334AK

3000

334

2450

1500

2500

34

TBB10-4000/334AK

4000

334

3050

1500

2500

35

TBB10-5000/334AK

5000

334

3050

1500

2500

36

TBB10-6000/334AK

6000

334

3650

1500

2500

37

TBB10-1200/400AK

1200

400

1850

1500

2500

38

TBB10-2400/400AK

2400

400

2450

1500

2500

39

TBB10-3600/400AK

3600

400

2450

1500

2500

40

TBB10-4800/400AK

4800

400

3050

1500

2500

41

TBB10-5000/417AK

5000

417

3050

1500

2500

42

TBB10-6000/500AK

6000

500

3050

1500

2500

43

TBB10-5000/417AC

5000

417

3650

1500

2500

4

44

TBB10-6000/500AC

6000

500

3650

1500

2500

45

TBB10-8000/334AC

8000

334

4850

1500

2500

46

TBB10-10000/417AC

10000

417

4850

1500

2500

Note: Figure 3 shows the open triangle voltage protection and Figure 4 shows the voltage differential protection.

Table 5 Main technical data of complete sets of indoor frame type high voltage shunt capacitors



No.

Model

Rated voltage (kV)

Rated capacity (kvar)

Unit capacity (kvar)

Protection scheme

Weight

Drawing No

L

W

H

1

TBB6-600/200AK

6

600

200

External fault protection: quick break, over current, over voltage, voltage loss
Internal fault protection: internal fuse + open triangle voltage protection (voltage differential protection)

3000

2000

2700

5

2

TBB6-1200/200AK

1200

200

3500

2000

2700

3

TBB6-1800/200AK

1800

200

3500

2000

2700

4

TBB6-2400/200AK

2400

200

4000

2000

2700

5

TBB6-3000/200AK

3000

200

4000

2000

2700

6

TBB6-3600/200AK

3600

200

4500

2000

2700

7

TBB6-4200/200AK

4200

200

4500

2000

2700

8

TBB6-4800/200AK

4800

200

5000

2000

2700

9

TBB6-1000/334AK

1000

334

3000

2000

2700

10

TBB6-2000/334AK

2000

334

3500

2000

2700

11

TBB6-3000/334AK

3000

334

3500

2000

2700

12

TBB6-4000/334AK

4000

334

4000

2000

2700

13

TBB6-5000/334AK

5000

334

4000

2000

2700

14

TBB6-6000/334AK

6000

334

4500

2000

2700

15

TBB6-1200/400AK

1200

400

3000

2000

2700

16

TBB6-2400/400AK

2400

400

3500

2000

2700

17

TBB6-3600/400AK

3600

400

3500

2000

2700

18

TBB6-4800/400AK

4800

400

4000

2000

2700

19

TBB6-5000/417AK

5000

417

4000

2000

2700

20

TBB6-6000/500AK

6000

500

4000

2000

2700

21

TBB6-5000/417AC

5000

417

4500

2000

2700

6

22

TBB6-6000/500AC

6000

500

4500

2000

2700

23

TBB10-600/200AK

10

600

200

3000

2000

2700

5

24

TBB10-1200/200AK

1200

200

3500

2000

2700

25

TBB10-1800/200AK

1800

200

3500

2000

2700

26

TBB10-2400/200AK

2400

200

4000

2000

2700

27

TBB10-3000/200AK

3000

200

4000

2000

2700

28

TBB10-3600/200AK

3600

200

4500

2000

2700

29

TBB10-4200/200AK

4200

200

4500

2000

2700

30

TBB10-4800/200AK

4800

200

5000

2000

2700

31

TBB10-1000/334AK

1000

334

3000

2000

2700

32

TBB10-2000/334AK

2000

334

3500

2000

2700

33

TBB10-3000/334AK

3000

334

3500

2000

2700

34

TBB10-4000/334AK

4000

334

4000

2000

2700

35

TBB10-5000/334AK

5000

334

4000

2000

2700

36

TBB10-6000/334AK

6000

334

4500

2000

2700

37

TBB10-1200/400AK

1200

400

3000

2000

2700

38

TBB10-2400/400AK

2400

400

3500

2000

2700

39

TBB10-3600/400AK

3600

400

3500

2000

2700

40

TBB10-4800/400AK

4800

400

4000

2000

2700

41

TBB10-5000/417AK

5000

417

4000

2000

2700

42

TBB10-6000/500AK

6000

500

4000

2000

2700

43

TBB10-5000/417AC

5000

417

4500

2000

2700

6

44

TBB10-6000/500AC

6000

500

4500

2000

2700

45

TBB10-8000/334AC

8000

334

5000

2000

2700

46

TBB10-10000/417AC

10000

417

5500

2000

2700

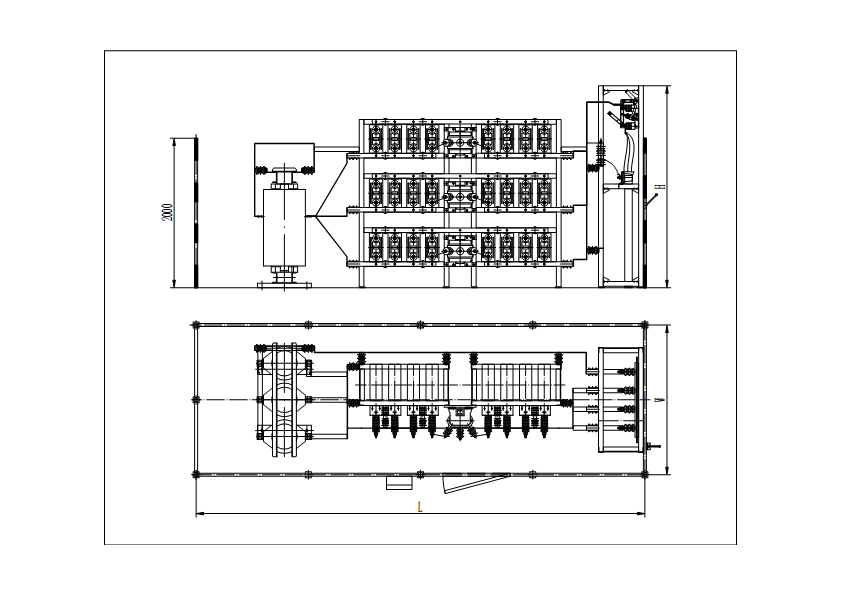

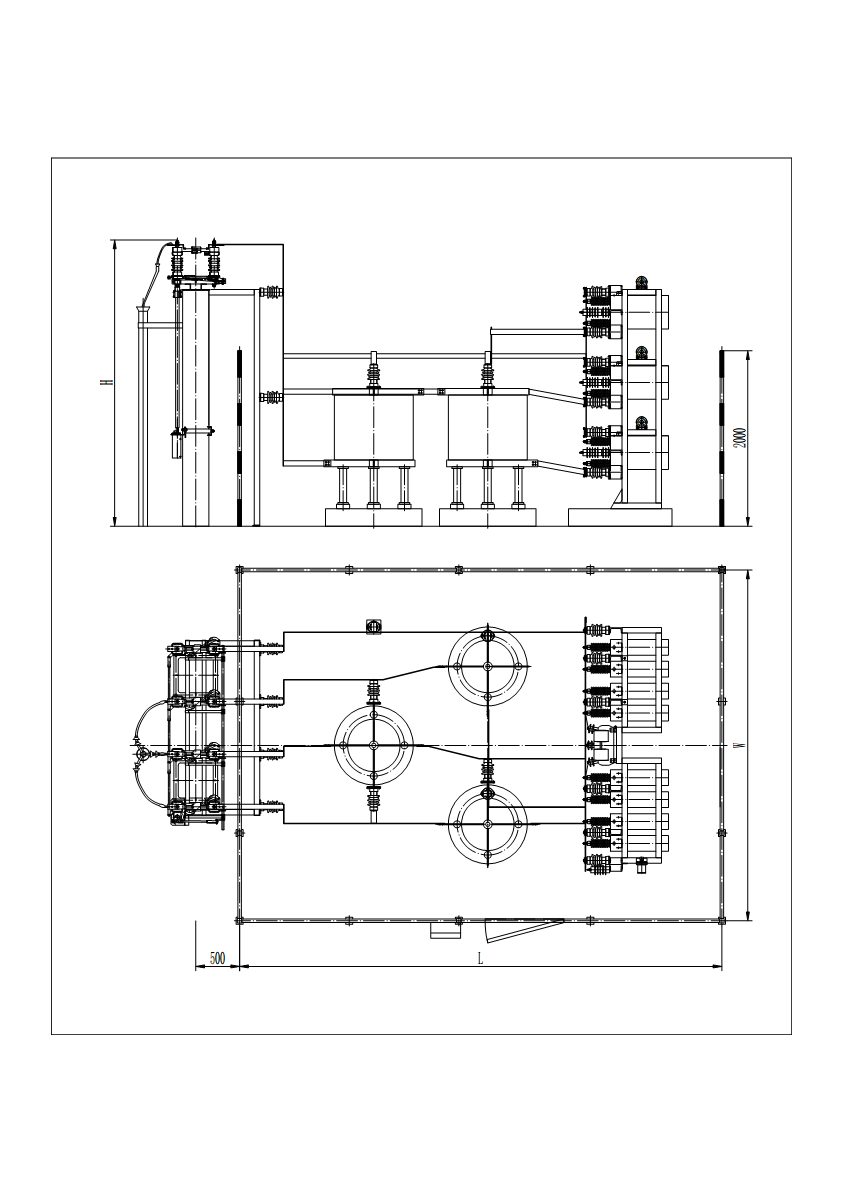

Table 6 Main technical data of outdoor frame type high voltage shunt capacitors complete set (reactor stack)

No.

Model

Rated voltage (kV)

Rated capacity (kvar)

Unit capacity (kvar)

Protection scheme

Weight

Drawing No

L

W

H

1

TBB6-600/200AKW

6

600

200

External fault protection: quick break, over current, over voltage, voltage loss
Internal fault protection External fuse (internal fuse)+ open triangle voltage protection (voltage differential protection)

4000

3000

4000

7

2

TBB6-1200/200AKW

1200

200

4000

3000

4000

3

TBB6-1800/200AKW

1800

200

4000

3000

4000

4

TBB6-2400/200AKW

2400

200

4000

3000

4000

5

TBB6-3000/200AKW

3000

200

4500

3000

4000

6

TBB6-3600/200AKW

3600

200

4500

3000

4000

7

TBB6-4200/200AKW

4200

200

4500

3000

4000

8

TBB6-4800/200AKW

4800

200

4500

3000

4000

9

TBB6-1000/334AKW

1000

334

4000

3000

4000

10

TBB6-2000/334AKW

2000

334

4000

3000

4000

11

TBB6-3000/334AKW

3000

334

4500

3000

4000

12

TBB6-4000/334AKW

4000

334

4500

3000

4000

13

TBB6-5000/334AKW

5000

334

4500

3000

4000

14

TBB6-6000/334AKW

6000

334

4500

3000

4000

15

TBB6-1200/400AKW

1200

400

4000

3000

4000

16

TBB6-2400/400AKW

2400

400

4000

3000

4000

17

TBB6-3600/400AKW

3600

400

4500

3000

4000

18

TBB6-4800/400AKW

4800

400

4500

3000

4000

19

TBB6-5000/417AKW

5000

417

4500

3000

4000

20

TBB6-6000/500AKW

6000

500

4500

3000

4000

21

TBB6-5000/417ACW

5000

417

4500

3000

4000

8

22

TBB6-6000/334ACW

6000

334

4500

3000

4000

23

TBB6-6000/500ACW

6000

500

4500

3000

4000

24

TBB10-600/200AKW

10

600

200

4000

3000

4000

7

25

TBB10-1200/200AKW

1200

200

4000

3000

4000

26

TBB10-1800/200AKW

1800

200

4000

3000

4000

27

TBB10-2400/200AKW

2400

200

4000

3000

4000

28

TBB10-3000/200AKW

3000

200

4500

3000

4000

29

TBB10-3600/200AKW

3600

200

4500

3000

4000

30

TBB10-4200/200AKW

4200

200

4500

3000

4000

31

TBB10-4800/200AKW

4800

200

4500

3000

4000

32

TBB10-1000/334AKW

1000

334

4000

3000

4000

33

TBB10-2000/334AKW

2000

334

4000

3000

4000

34

TBB10-3000/334AKW

3000

334

4500

3000

4000

35

TBB10-4000/334AKW

4000

334

4500

3000

4000

36

TBB10-5000/334AKW

5000

334

4500

3000

4000

37

TBB10-6000/334AKW

6000

334

4500

3000

4000

38

TBB10-1200/400AKW

1200

400

4000

3000

4000

39

TBB10-2400/400AKW

2400

400

4000

3000

4000

40

TBB10-3600/400AKW

3600

400

4500

3000

4000

41

TBB10-4800/400AKW

4800

400

4500

3000

4000

42

TBB10-5000/417AKW

5000

417

4500

3000

4000

43

TBB10-6000/500AKW

6000

500

4500

3000

4000

44

TBB10-5000/417ACW

5000

417

4500

3000

4000

8

45

TBB10-6000/334ACW

6000

334

4500

3000

4000

46

TBB10-6000/500ACW

6000

500

4500

3000

4000

47

TBB10-8000/334ACW

8000

334

4500

3500

4000

48

TBB10-10000/417ACW

10000

417

4500

3500

4000

Table 7 Main technical data of complete set of outdoor frame type high voltage shunt capacitors (reactor laying flat)

No.

Model

Rated voltage (kV)

Rated capacity (kvar)

Unit capacity (kvar)

Protection scheme

Weight

Drawing No

L

W

H

1

TBB6-600/200AKW

6

600

200

External fault protection: quick break, over current, over voltage, voltage loss
Internal fault protection External fuse (internal fuse)+ open triangle voltage protection (voltage differential protection)

5000

3500

3500

9

2

TBB6-1200/200AKW

1200

200

5000

3500

3500

3

TBB6-1800/200AKW

1800

200

5000

3500

3500

4

TBB6-2400/200AKW

2400

200

5000

3500

3500

5

TBB6-3000/200AKW

3000

200

5000

3500

3500

6

TBB6-3600/200AKW

3600

200

5000

3500

3500

7

TBB6-4200/200AKW

4200

200

5000

3500

3500

8

TBB6-4800/200AKW

4800

200

5000

3500

3500

9

TBB6-1000/334AKW

1000

334

5000

3500

3500

10

TBB6-2000/334AKW

2000

334

5000

3500

3500

11

TBB6-3000/334AKW

3000

334

5000

3500

3500

12

TBB6-4000/334AKW

4000

334

5000

3500

3500

13

TBB6-5000/334AKW

5000

334

5500

3500

3500

14

TBB6-6000/334AKW

6000

334

5500

3500

3500

15

TBB6-1200/400AKW

1200

400

5000

3500

3500

16

TBB6-2400/400AKW

2400

400

5000

3500

3500

17

TBB6-3600/400AKW

3600

400

5000

3500

3500

18

TBB6-4800/400AKW

4800

400

5000

3500

3500

19

TBB6-5000/417AKW

5000

417

5500

3500

3500

20

TBB6-6000/500AKW

6000

500

5500

3500

3500

21

TBB6-5000/417ACW

5000

417

5500

3500

3500

10

22

TBB6-6000/334ACW

6000

334

5500

3500

3500

23

TBB6-6000/500ACW

6000

500

5500

3500

3500

24

TBB10-600/200AKW

10

600

200

5000

3500

3500

9

25

TBB10-1200/200AKW

1200

200

5000

3500

3500

26

TBB10-1800/200AKW

1800

200

5000

3500

3500

27

TBB10-2400/200AKW

2400

200

5000

3500

3500

28

TBB10-3000/200AKW

3000

200

5000

3500

3500

29

TBB10-3600/200AKW

3600

200

5000

3500

3500

30

TBB10-4200/200AKW

4200

200

5000

3500

3500

31

TBB10-4800/200AKW

4800

200

5000

3500

3500

32

TBB10-1000/334AKW

1000

334

5000

3500

3500

33

TBB10-2000/334AKW

2000

334

5000

3500

3500

34

TBB10-3000/334AKW

3000

334

5000

3500

3500

35

TBB10-4000/334AKW

4000

334

5000

3500

3500

36

TBB10-5000/334AKW

5000

334

5500

3500

3500

37

TBB10-6000/334AKW

6000

334

5500

3500

3500

38

TBB10-1200/400AKW

1200

400

5000

3500

3500

39

TBB10-2400/400AKW

2400

400

5000

3500

3500

40

TBB10-3600/400AKW

3600

400

5000

3500

3500

41

TBB10-4800/400AKW

4800

400

5000

3500

3500

42

TBB10-5000/417AKW

5000

417

5500

3500

3500

43

TBB10-6000/500AKW

6000

500

5500

3500

3500

44

TBB10-5000/417ACW

5000

417

5500

3500

3500

10

45

TBB10-6000/334ACW

6000

334

5500

3500

3500

46

TBB10-6000/500ACW

6000

500

5500

3500

3500

47

TBB10-8000/334ACW

8000

334

5500

4000

3500

48

TBB10-10000/417ACW

10000

417

5500

4000

3500

49

TBB20-12000/500ACW

20

12000

500



6500

6500

4000

11

50

TBB35-4000/334AKW

35

4000

334

7500

5500

4000

51

TBB35-6000/334ACW

6000

334

7500

5500

4000

52

TBB35-8000/334ACW

8000

334

7500

6000

4000

53

TBB35-10000/417ACW

10000

417

8000

6000

4000

54

TBB35-12000/500ACW

12000

500

8000

6500

4000

55

TBB35-20000/417ACW

20000

417

8000

7000

4000

56

TBB35-30000/500ACW

30000

500

8000

7000

4000

57

TBB35-40000/417AQW

40000

417

9000

7000

4000

58

TBB35-60000/500AQW

60000

500

9000

7000

4000



Figure 1

无功补偿成套装置

Figure 2

无功补偿成套装置

Figure 3

无功补偿成套装置

Figure 4

无功补偿成套装置

Figure 5

无功补偿成套装置

Figure 6

无功补偿成套装置

Figure 7

无功补偿成套装置

Figure 8

无功补偿成套装置

Figure 9

无功补偿成套装置

Figure 10

无功补偿成套装置

Figure 11

无功补偿成套装置

Online consultation

Recommended products
