DC-Link DC support capacitor

Environmental usage conditions:
a. The altitude of the area of use shall not exceed 1000m.
b. The ambient temperature in the area of use: -40~+45 ℃.
c. The place of use should be free from severe mechanical vibration, harmful gases and vapors, and conductive or explosive dust.
4.2 Other usage conditions:
Before the capacitor is put into operation, the remaining voltage between its terminals should not exceed 10% of the rated voltage. When capacitors involve high relative humidity, rapid mold growth, corrosive atmosphere, pollution, and altitude exceeding 1000m

Online consultation

contact

Category:

Dc filter capacitor

Keywords：

Dc filter capacitor

0575-82051378

sycapacitor@163.com

Details

Product characteristics

■ DC filter, can replace electrolytic capacitor

■ Polypropylene film, good temperature characteristics

■ Stable capacity, small rate of change

■ Small equivalent series resistance, can withstand larger current

■ Small sense of self, with self-healing

■ Aluminum shell, flame retardant epoxy resin

Typical application

■ Widely used in DC-Link circuit for filtering/energy storage

■ Can be used in wind power generation, photovoltaic inverter circuit, also can be used in UL1S power supply, frequency converter, electroplating power supply, large switching power supply, SVG dynamic reactive compensation equipment, can also be used in other power electronic equipment.

Outline Drawing

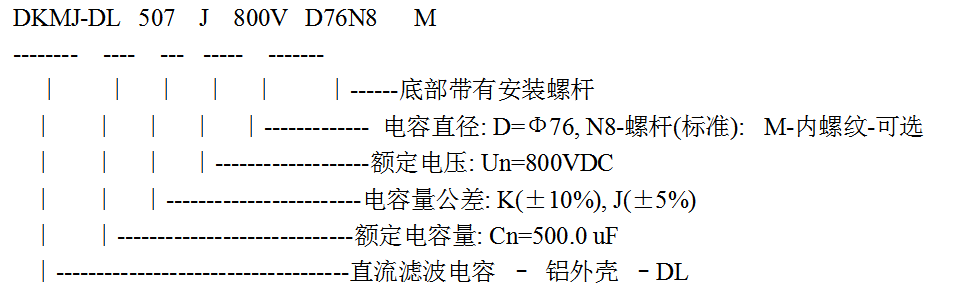

Identification

Performance characteristic

Project						Characteristic
Reference standard						GB/T 17702 (IEC 610710
Climatic category						55/85/56
Operating temperature range						-55~+85℃
Storage temperature range						-55~+85℃
Rated voltage						600~3600VDC
Capacitance range						100-7200μF
Capacitance deviation						±5% (J), ±10% (K)
Terminal to terminal voltage						1.5*Un/10S
Voltage between terminal and aluminum case						＞3000VAC/10S
Dielectric loss tangent						≤2*10-4
Insulation resistance						IR.C≥10000S (100VDC.1min)
Overvoltage						1.1Un（30%of on-load-duration）
						1.15 Un（30min/day）
						1.2 Un（5min/day）
						1.3 Un（1min/day）
						1.5 Un（30ms every time，100ms/day）
Maximum electrode torque						M5:3Nm		M6:5Nm			M8:6Nm		M10:8Nm
Maximum mounting torque						M12:12Nm					M16:15Nm
Life expectancy						100000hours
Failure rate						50FIT
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
600	480	70	61	50	5.1		4800		1.6	≤50		76		95
	650	81	70	57	5.6		5200		1.1	≤50		85/86		95
	650	67	58	47	4.7		5200		1.9	≤60		76		120
	770	88	76	62	4.3		6160		1.2	≤60		76		136
	880	80	69	57	4.8		6248		1.3	≤60		85/86		120
	950	82	71	58	4.2		6650		1.4	≤60		76		175
	1000	93	81	66	4.6		6700		1.0	≤60		85/86		136
	1100	81	70	57	4.4		6600		1.4	≤50		85/86		155
	1200	96	83	68	5.4		7200		0.8	≤50		116		95
	1300	96	84	68	4.3		7800		1.0	≤60		85/86		175
	1600	94	82	67	5.0		9600		0.9	≤60		116		120
	1800	95	83	67	4.0		10800		1.1	≤60		85/86		225
	1900	86	75	61	4.9		11400		1.1	≤60		116		136
	2100	100	100	85	4.6		11550		0.6	≤60		116		155
	2400	100	100	86	4.5		12000		0.6	≤60		116		175
	3000	100	100	96	2.7		15000		0.8	≤60		116		230
	5000	100	100	100	2.2		25000		0.9	≤80		116		345
	5600	100	100	100	2.0		28000		0.8	≤80		136		252
	7200	100	100	100	1.8		36000		0.8	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
700	350	70	61	50	5.1		3600		1.6	≤60		76		95
	480	64	55	45	4.7		3840		2.1	≤60		76		120
	480	71	62	51	5.6		3840		1.4	≤60		85/86		95
	580	60	52	43	4.6		5800		2.4	≤60		76		136
	620	79	68	56	4.3		6200		1.5	≤60		76		155
	700	77	67	55	4.2		7200		1.6	≤60		76		175
	750	66	57	47	4.6		7200		2.0	≤60		86		136
	780	68	59	48	4.6		7800		1.9	≤60		86		136
	920	100	89	73	5.4		9200		0.7	≤60		116		95
	950	79	68	56	4.3		9500		1.5	≤60		86		175
	1200	89	77	63	5.0		7200		1.0	≤60		116		120
	1500	86	75	61	4.9		9000		1.1	≤60		116		136
	1500	100	90	74	4.6		9000		0.8	≤60		116		155
	1800	94	82	67	4.5		10800		1.0	≤60		116		175
	2300	100	100	96	2.7		13800		0.8	≤60		116		230
	4200	100	100	100	2.0		25200		0.8	≤80		136		252
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
800	280	68	59	48	5.1		2800		1.7	≤50		76		95
	370	69	60	49	5.6		3700		1.5	≤50		85/86		95
	380	58	51	41	4.7		3800		2.2	≤60		76		120
	430	57	49	40	4.6		4300		2.6	≤60		76		136
	470	76	66	54	4.3		4700		1.6	≤60		76		155
	510	70	61	50	4.8		5100		1.7	≤60		85/86		120
	560	73	63	51	4.2		5600		1.7	≤60		76		175
	580	68	59	48	4.6		5800		1.9	≤60		85/86		136
	640	91	79	64	4.4		6400		1.1	≤50		85/86		155
	710	82	71	58	5.4		7100		1.1	≤50		116		95
	750	85	73	60	4.3		7500		1.3	≤60		85/86		175
	970	82	71	58	5.0		7760		1.2	≤60		116		120
	1000	85	73	60	4.0		8000		1.4	≤60		85/86		225
	1000	76	66	54	4.9		8000		1.4	≤60		116		136
	1200	100	90	74	4.6		9600		0.8	≤60		116		155
	1400	100	91	75	4.5		11200		0.8	≤60		116		175
	1800	100	100	86	2.7		11700		1.0	≤60		116		230
	2000	100	100	90	3.5		12000		0.7	≤80		136		175
	2700	100	100	93	2.9		16200		0.8	≤80		136		230
	3100	100	100	100	2.0		18600		1.0	≤80		136		252
	3300	100	100	100	2.2		19800		0.9	≤80		116		345
	4300	100	100	100	1.8		25800		0.9	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
900	280	63	54	44	5.1		2800		2.0	≤50		76		95
	370	67	58	47	5.6		3700		1.6	≤50		85/86		95
	380	56	49	40	4.7		3800		2.6	≤60		76		120
	430	55	47	39	4.6		4300		2.9	≤60		76		136
	470	74	64	52	4.3		4700		1.7	≤60		76		155
	510	68	59	48	4.8		5100		1.8	≤60		85/86		120
	560	69	60	49	4.2		5600		2.0	≤60		76		175
	580	64	56	46	4.6		5800		2.1	≤60		85/86		136
	640	87	75	62	4.4		6400		1.2	≤50		85/86		155
	710	79	68	56	5.4		7100		1.2	≤50		116		95
	750	82	71	58	4.3		7500		1.4	≤60		85/86		175
	970	798	68	55	5.0		7600		1.3	≤60		116		120
	1000	82	71	58	4.0		8000		1.5	≤60		85/86		225
	1000	74	64	52	4.9		8000		1.5	≤60		116		136
	1200	93	81	66	4.6		9600		1.0	≤60		116		155
	1400	99	86	70	4.5		11200		0.9	≤60		116		175
	1800	100	100	82	2.7		11700		1.1	≤60		116		230
	2000	100	100	100	2.5		12000		0.8	≤80		136		175
	2700	100	100	88	2.9		16200		0.9	≤80		136		230
	3100	100	100	95	2.0		18600		1.1	≤80		136		252
	3300	100	100	95	2.2		19800		1.0	≤80		116		345
	4300	100	100	100	1.8		25800		1.0	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
1000	220	57	50	40	5.1		2420		2.4	≤50		76		95
	290	65	56	46	5.6		3190		1.7	≤50		85/86		95
	300	55	48	39	4.7		3300		2.8	≤60		76		120
	330	54	47	38	4.6		3630		3.0	≤60		76		136
	360	72	62	51	4.3		3960		1.8	≤60		76		155
	400	66	57	47	4.8		4400		1.9	≤60		85/86		120
	420	69	60	49	4.2		4620		2.0	≤60		76		175
	450	64	56	46	4.6		4950		2.1	≤60		85/86		136
	500	87	75	62	4.4		5000		1.2	≤50		85/86		155
	540	79	68	56	5.4		5400		1.2	≤50		116		95
	560	82	71	58	4.3		5600		1.4	≤60		85/86		175
	740	79	68	55	5.0		7400		1.3	≤60		116		120
	810	81	79	65	3.0		8100		1.6	≤60		85/86		225
	860	71	62	51	4.9		8600		1.6	≤60		116		136
	900	98	85	70	4.6		8760		0.9	≤60		116		155
	1100	99	86	70	4.5		8800		0.9	≤60		116		175
	1400	100	100	82	2.7		11200		1.1	≤60		116		230
	1500	100	100	100	2.5		12000		0.8	≤80		136		175
	2100	100	100	88	2.9		12600		0.9	≤80		136		230
	2200	100	100	91	2.2		13200		1.1	≤80		116		345
	2400	100	100	95	2.0		14400		1.1	≤80		136		252
	3200	100	100	100	1.8		19200		1.1	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
1100	170	54	47	38	5.1		2040		2.7	≤50		76		95
	240	61	53	43	5.6		2880		1.9	≤50		85/86		95
	240	52	45	37	4.7		2880		3.1	≤60		76		120
	270	51	44	36	4.6		3240		3.4	≤60		76		136
	300	68	59	48	4.3		3600		2.0	≤60		76		155
	320	62	53	44	4.8		3840		2.2	≤60		85/86		120
	350	64	56	46	4.2		4200		2.3	≤60		76		175
	420	60	52	43	4.6		5040		2.4	≤60		85/86		136
	420	81	70	57	4.4		5040		1.4	≤50		85/86		155
	450	75	65	53	5.4		5400		1.3	≤50		116		95
	480	76	66	54	4.3		5760		1.6	≤60		85/86		175
	620	73	63	52	5		6200		1.6	≤60		116		120
	650	75	65	53	4.0		6500		1.8	≤60		85/86		225
	690	69	60	49	4.9		6900		1.7	≤60		116		136
	770	93	81	66	4.6		7700		1.0	≤60		116		155
	910	94	82	67	4.5		9100		1.0	≤60		116		175
	1200	100	96	79	2.7		9600		1.2	≤60		116		230
	1200	100	100	94	2.5		9600		0.9	≤80		136		175
	1700	100	100	83	2.9		13600		1.0	≤80		136		230
	1900	100	100	95	2.0		15200		1.1	≤80		136		252
	2000	100	100	84	2.2		16000		1.3	≤80		116		345
	2900	100	100	100	1.8		23200		1.0	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
1200	140	51	44	36	5.1		1680		3.0	≤50		76		95
	190	58	51	41	5.6		2280		2.1	≤50		85/86		95
	200	50	43	35	4.7		2400		3.4	≤50		76		120
	220	48	42	34	4.6		2640		3.7	≤60		76		136
	240	65	56	46	4.3		2880		2.2	≤60		76		155
	260	59	51	42	4.8		3120		2.4	≤60		85/86		120
	280	62	53	44	4.2		3360		2.5	≤60		76		175
	300	58	50	41	4.6		3600		2.6	≤60		85/86		136
	330	78	67	55	4.4		3960		1.5	≤50		85/86		155
	360	73	63	51	5.4		4320		1.4	≤50		116		95
	380	72	62	51	4.3		4560		1.8	≤60		85/86		175
	500	69	59	49	5.0		5500		1.7	≤60		116		120
	540	71	61	50	4.0		5940		2.0	≤60		85/86		225
	570	66	57	46	4.9		6270		1.9	≤60		116		136
	620	89	77	63	4.6		6820		1.1	≤60		116		155
	720	90	78	64	4.5		7920		1.1	≤60		116		175
	950	100	92	75	2.7		9500		1.3	≤60		116		230
	1000	100	100	89	2.5		10000		1.0	≤80		136		175
	1400	100	97	79	2.9		14000		1.1	≤80		136		230
	1600	100	100	91	2.0		16000		1.2	≤80		136		252
	1600	100	100	95	2.2		16000		1.0	≤80		116		345
	2200	100	100	100	1.8		23200		1.0	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
1300	120	49	42	34	5.1		1440		3.3	≤50		76		95
	160	56	48	39	5.6		1920		2.3	≤50		85/86		95
	160	48	42	34	4.7		1920		3.7	≤60		76		120
	180	46	40	33	4.6		2160		4.1	≤60		76		136
	210	62	54	44	4.3		2520		2.4	≤60		76		155
	220	57	49	40	4.8		2640		2.6	≤60		85/86		120
	240	58	51	41	4.2		2880		2.8	≤60		76		175
	250	55	47	39	4.6		3000		2.9	≤60		85/86		136
	280	73	63	52	4.4		3360		1.7	≤50		85/86		155
	310	68	59	48	5.4		3720		1.6	≤50		116		95
	320	70	61	49	4.3		3840		1.9	≤60		85/86		175
	420	67	58	47	5.0		5040		1.8	≤60		116		120
	450	67	58	48	4.0		5400		2.2	≤60		85/86		225
	480	62	54	44	4.9		5760		2.1	≤60		116		136
	530	89	77	63	4.6		6360		1.1	≤60		116		155
	630	90	78	64	4.5		7560		1.1	≤60		116		175
	820	99	86	70	2.7		9840		1.5	≤60		116		230
	880	100	100	85	2.5		10560		1.1	≤80		136		175
	1200	100	93	76	2.9		13200		1.2	≤80		136		230
	1300	100	100	88	2.0		14300		1.3	≤80		136		252
	1400	100	100	87	2.2		15400		1.2	≤80		116		345
	1900	100	100	96	1.8		20900		1.2	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
1500	170	52	45	37	4.8		2040		3.1	≤60		85/86		120
	210	67	58	48	4.4		2520		2.0	≤60		85/86		155
	310	62	53	44	5.0		3720		2.1	≤60		116		120
	330	63	55	45	4.0		3960		2.5	≤60		85/86		225
	400	79	68	56	4.6		4800		1.4	≤60		116		155
	600	93	81	66	2.7		7200		1.7	≤60		116		230
	1000	100	100	100	2.0		12000		1.0	≤80		136		252
	1000	100	100	95	2.2		12000		1.0	≤80		116		345
	1400	100	100	100	1.8		16800		1.0	≤80		136		345
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
1700	130	49	42	35	4.8		1560		3.5	≤60		85/86		120
	160	63	54	44	4.4		1920		2.3	≤60		85/86		155
	240	58	50	41	5.0		2880		2.4	≤60		116		120
	250	59	51	42	4.0		3000		2.9	≤60		85/86		225
	300	74	64	52	4.6		3600		1.6	≤60		116		155
	460	91	79	64	2.7		5520		1.8	≤60		116		230
	760	100	91	75	2.0		9120		1.8	≤80		136		252
Un	Cn	Imax(A)			Rth		Ipeak		Rs	Ls		D		H
	μF	40℃	50℃	60℃	(K/W)		(A)		（mΩ)	(nH)		(mm)		(mm)
2000	100	46	40	32	4.8		1200		4.0	≤60		85/86		120
	120	60	52	43	4.4		1440		2.5	≤60		85/86		155
	190	54	47	38	5.0		2280		2.7	≤60		116		120
	190	55	48	39	4.0		2280		3.3	≤60		85/86		225
	240	70	60	49	4.6		2880		1.8	≤60		116		155
	370	82	71	58	2.7		4440		2.2	≤60		116		230
	600	100	100	87	2.2		6000		1.2	≤80		116		345
	600	100	100	91	2		6000		1.2	≤80		136		252
	800	100	100	100	1.8		9600		1.1	≤80		136		345

Instructions for selection

Different parameters can be designed according to customer requirements, more AC-DC filter capacitor type choice, please refer to other specifications metallized film capacitor.

Online consultation
